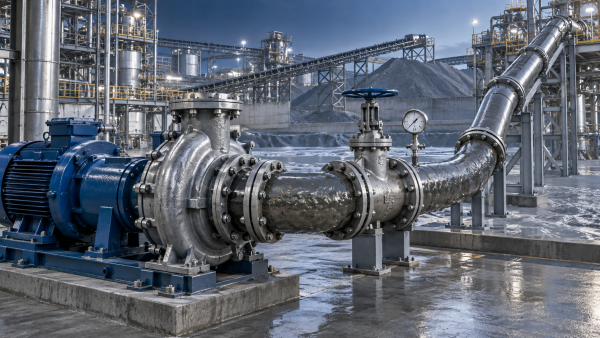

What causes slurry pump failures in flue gas desulfurization systems

Slurry pump failures in Flue Gas Desulfurization Systems rarely have a single cause. A failed wet-end part, leaking seal, hot bearing, or repeated low-flow trip is usually the visible result of a mismatch between the pump, the slurry, and the way the system is being operated. Replacing the damaged component without identifying that mismatch often leads to another failure in the same location.

For maintenance work, the most useful starting point is to separate failures into four interacting areas: slurry condition, hydraulic operation, materials and mechanical condition, and the condition of the connected piping and support equipment. The damage pattern usually points toward the area that needs attention.

Start with the failed component, not the assumption

A slurry pump in an FGD absorber loop handles recirculating liquid containing suspended solids, dissolved chlorides, acidic compounds, and reaction products. It operates in a harsh duty where abrasion, corrosion, erosion, vibration, and seal contamination may occur together. Calling every failure “wear” is too broad to prevent recurrence.

Before stripping the pump, record the operating condition at the time of failure: suction and discharge pressures, flow indication, motor load, vibration trend if available, slurry density or solids condition, tank level, seal-water status, and any recent changes to limestone feed, oxidation air, wash water, or piping. A change upstream of the pump can create a pump failure even when the pump itself was assembled correctly.

Abrasive wear: common, but not always normal

FGD slurry is abrasive because solids remain in circulation. Wear to impellers, throatbushes, liners, and casing sections is expected over time, but the wear rate should be stable enough to plan maintenance. A sudden increase in wear usually means the service conditions have changed.

Higher solids concentration can increase particle-to-surface contact. Larger or harder particles can intensify cutting action. Excessive pump speed raises particle velocity and makes erosion more severe, especially at high-turbulence zones such as the impeller leading edges, volute tongue, and discharge passages. Operating a pump at a much higher flow than intended can create similar localized erosion even when speed has not changed.

Do not judge wear only by overall thickness loss. The location matters. Wear concentrated at the impeller eye may indicate poor inlet flow or recirculation. Damage at the volute tongue can suggest excessive flow. A heavily worn throatbush may allow recirculation between high- and low-pressure areas, reducing efficiency and accelerating damage elsewhere.

Material selection must match both abrasion and chemical exposure. A material that resists particle erosion may not resist the slurry chemistry, while a corrosion-resistant material may be less suitable for severe abrasion. Changing a failed part to a harder material without checking the chemical environment can shift the failure from rapid wear to corrosion, cracking, or other damage.

Corrosion and erosion-corrosion can look deceptively similar

In wet flue gas desulfurization service, slurry chemistry can attack metal surfaces, particularly where protective films are disrupted by high-velocity particles. This combined mechanism is often more destructive than abrasion or corrosion alone. It may produce roughened areas, pitting, thinning around joints, or damage that appears more severe in high-velocity regions.

Changes in pH control, chloride concentration, oxidation conditions, reagent quality, or the amount of dilution water can alter corrosion behavior. Maintenance teams should therefore look beyond the pump whenever corrosion damage appears unexpectedly. A pump overhaul cannot correct an absorber chemistry issue.

Rubber-lined or elastomer-lined components can also fail when the fluid temperature, chemical exposure, solids characteristics, or mechanical fit is unsuitable. Blistering, softening, debonding, or torn sections should not be treated as simple abrasion. Inspect the liner bond area, the seating surfaces, and whether solids have accumulated behind the liner. Once slurry reaches a hidden gap, damage can spread quickly.

Cavitation is often an inlet-system problem

Cavitation occurs when local pressure at the pump inlet falls enough for vapor cavities to form and then collapse as pressure recovers inside the pump. The collapse can damage the impeller, create noise and vibration, reduce flow, and shorten bearing and seal life. In slurry service, it can be mistaken for ordinary erosion because both leave damaged metal surfaces.

The usual causes are inadequate suction head, a blocked or undersized suction line, restricted strainers, excessive suction lift, low tank level, air entering through a flange or valve stem, and slurry conditions that increase resistance at the inlet. A partially blocked suction line may not create a complete loss of flow, but it can still move the pump into an unstable and damaging condition.

Air entrainment deserves special attention in FGD systems. Air can enter through vortexing in the tank, poorly arranged return flow, leaking suction joints, foam, or disturbed slurry level. The result may be fluctuating discharge pressure, unstable motor current, vibration, and intermittent seal leakage. Replacing the impeller will not solve this if the pump is repeatedly ingesting air.

When inspecting suspected cavitation, examine the suction pipe internally where possible, not only the visible valves. Check for liner collapse, deposited solids, damaged flexible connectors, partially closed isolation valves, and piping arrangements that trap air. Also inspect the sump or tank condition while the system is operating. A calm liquid level during shutdown does not confirm stable inlet conditions under circulation.

Mechanical seals fail when the pump loses mechanical stability

Seal failure is often reported as the primary problem because leakage is immediately visible. In many cases, however, the seal is the first component to reveal another fault. Slurry entering the seal chamber, loss of flush water, shaft runout, bearing movement, dry running, or repeated pressure fluctuations can all damage seal faces.

A clean, reliable flush supply is essential where the seal arrangement requires it. The flush line needs sufficient pressure to prevent slurry from migrating into the seal area, but excessive pressure can also create unnecessary heat, leakage, or seal-face disturbance. The correct condition depends on the seal design and pump arrangement, so maintenance should verify the installed configuration rather than applying a generic setting.

When a seal fails, inspect the shaft sleeve and seal faces before fitting replacements. Grooves, scoring, heat marks, cracked faces, or embedded solids identify different failure paths. Also check whether the seal chamber is clogged with gypsum scale or settled material. Rebuilding only the seal while leaving a scored sleeve or contaminated chamber in place commonly causes an early repeat leak.

Bearing damage may originate outside the bearing housing

Premature bearing failures are frequently attributed to lubrication, and contaminated or incorrect lubricant can certainly be responsible. Yet in FGD slurry pumps, bearing distress is also driven by misalignment, unbalanced rotating parts, excessive radial load, pipe strain, hydraulic surging, and shaft deflection caused by wet-end wear.

As clearances increase between the impeller, liners, and throatbush, internal recirculation rises. The pump may lose hydraulic efficiency and begin operating with higher vibration or unstable loading. A bearing replacement at that point may briefly reduce symptoms while the worn hydraulic components continue to impose damaging loads.

Check the full mechanical chain: baseplate bolts, grout or foundation condition, coupling alignment at operating temperature where relevant, motor mounting, pipe supports, and nozzle loads. A pump aligned before piping is connected can become misaligned once unsupported piping pulls on the casing. This is especially likely after maintenance work on expansion joints, valves, or heavy sections of discharge piping.

Operating too far from the intended duty point creates hidden damage

Slurry pumps should not be treated as simple transfer devices that can run at any available flow. Far from the pump’s stable operating range, internal recirculation and uneven hydraulic forces increase. Low-flow operation can heat and disturb the fluid inside the casing, while excessive flow can overload the motor, increase inlet losses, and accelerate erosion.

A common mistake is to throttle a discharge valve repeatedly to solve a process issue without checking the pump curve, actual system resistance, and minimum stable flow requirements. Another is to operate with a bypass permanently open without understanding how that affects tank mixing, suction conditions, and net flow through the pump.

Changes to pipe diameter, valve position, parallel pump operation, absorber circulation demand, or pump speed can all move the operating point. If failures began after a system modification, treat the modification as evidence. Do not assume the replacement pump is defective simply because it is the component that failed.

A practical inspection sequence after a repeat failure

1. Confirm the failure mode. Preserve damaged parts long enough to inspect the pattern. Photograph wet-end, seal, sleeve, and bearing condition before cleaning them.
2. Compare current operation with the previous stable condition. Look for changes in slurry properties, tank level, flow path, speed control, valve position, or chemical process conditions.
3. Inspect the suction side first. Restrictions, air ingress, poor tank hydraulics, and settled solids can create cavitation and unstable operation.
4. Measure mechanical condition. Check shaft runout, bearing clearance, coupling alignment, baseplate integrity, and pipe strain.
5. Examine wear clearances and material condition. Determine whether wear is normal service consumption or evidence of excessive velocity, solids, corrosion, or recirculation.
6. Verify seal support systems. Confirm flush flow path, fluid cleanliness, pressure behavior, and any blockage or scaling in the seal chamber.
7. Correct the cause before commissioning. New parts should be installed only after the operating or system condition that damaged the old parts has been addressed.

Failures that are often misdiagnosed

“The impeller is worn, so the pump is undersized.” Wear can reduce capacity, but it does not automatically prove that the pump was undersized. High solids, excessive speed, corrosive slurry, cavitation, or operation at excessive flow can wear an adequately sized pump quickly.

“The seal leaked, so the seal quality was poor.” A seal may be damaged by slurry contamination, shaft movement, poor flushing, dry running, or pressure instability. Repeated failure at similar intervals should trigger a system inspection, not only a seal brand change.

“The bearing failed because lubrication was missed.” Lubrication should be checked, but vibration caused by misalignment, pipe strain, cavitation, or hydraulic imbalance can produce the same result. Bearing evidence must be interpreted with the rest of the pump condition.

“The pump is noisy, so it must be cavitating.” Cavitation is one possibility. Loose components, damaged bearings, air entrainment, solids accumulation, impeller contact, and unstable flow can also produce noise. Inspect the damage pattern and operating behavior before deciding.

What should be checked before returning the pump to service

A reliable restart requires more than correct assembly. Verify free rotation, correct impeller setting where applicable, gasket and liner seating, fastener tightening according to the pump manufacturer’s procedure, coupling alignment, lubrication condition, and seal support readiness. Ensure suction and discharge valves are in the intended startup positions, the suction source has adequate level, and the system has been vented where air could be trapped.

During initial operation, watch discharge pressure, motor load, vibration, seal behavior, bearing temperature trend, and slurry flow stability. A short period of observation is valuable because it reveals whether the repaired pump has returned to a stable hydraulic condition. If pressure or current fluctuates, do not wait for the next inspection interval; investigate suction stability, entrained air, restrictions, and operating-point changes while the evidence is still present.

The most effective way to reduce slurry pump failures is to treat the pump as part of the FGD circulation system. Wear parts, seals, and bearings need proper maintenance, but their service life is determined just as strongly by slurry chemistry, solids behavior, suction conditions, piping loads, and actual operating duty. When those conditions are checked alongside the failed component, repeat failures become far easier to prevent.
