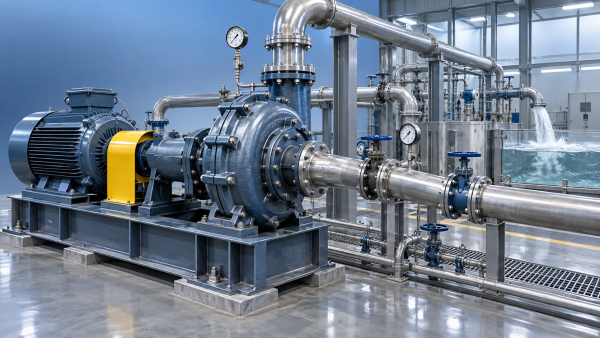

Selecting coal washing pumps for fine coal recovery circuits

Selecting coal washing pumps for a fine coal recovery circuit is not a simple matter of matching flow and head from a pump curve. In this part of the plant, the slurry is often more abrasive, less predictable, and more sensitive to process changes than the material handled in the primary washing stages. A pump that appears acceptable during early design may become a bottleneck once feed quality shifts, cyclone conditions change, or thickener underflow becomes denser than expected.

Fine coal recovery usually sits at the intersection of several operating priorities: maximizing combustible product recovery, minimizing misplaced coal in tailings, keeping dewatering equipment fed consistently, and avoiding excessive maintenance intervention. The right Coal Washing Pumps must support all of those priorities without forcing the circuit to operate around the pump’s limitations.

For project teams, the most useful selection approach is to start with the actual duty across the whole circuit rather than with a preferred pump size or a nominal pipe diameter. Fine coal slurry is rarely a stable fluid. Its solids concentration, particle size distribution, viscosity, entrained air content, and mineral composition can vary considerably over a shift or between mining areas. Those variations are where many pump selections succeed or fail.

Understand Where the Pump Sits in the Fine Coal Circuit

A fine coal recovery circuit can include desliming cyclones, classification equipment, flotation cells, concentrate transfer lines, thickener feed, thickener underflow transfer, filter feed, and tailings disposal. The pump duty changes substantially depending on its location. Treating all duties as generic “coal slurry pumping” leads to poor decisions.

For example, a pump feeding cyclones needs a stable pressure window. Variations in discharge pressure can alter the cut point, affect separation efficiency, and make downstream performance difficult to diagnose. A filter feed pump has a different challenge: it may need to handle higher-density slurry while maintaining enough pressure and flow stability for the dewatering equipment. Thickener underflow duties can be especially demanding because settling behavior, flocculant performance, bed inventory, and operator control practices all influence slurry consistency.

The practical question is not merely, “What flow does the pump need to deliver?” It is, “What process condition becomes unstable if this pump drifts away from its intended operating point?” In fine coal recovery, that is often the more valuable design question.

Start With the Slurry, Not the Water Curve

Water-based pump curves are useful reference tools, but they are not a complete basis for selecting Coal Washing Pumps. Slurry duty changes the hydraulic behavior of the pump. Fine coal itself may be relatively soft compared with hard rock minerals, yet the slurry can contain quartz, shale fragments, clay-bound particles, and other mineral contaminants that create wear. A circuit handling “fine coal” can therefore still be highly abrasive.

The key slurry inputs should be gathered before equipment selection is finalized:

• Expected and maximum solids concentration by weight or volume;
• Particle size distribution, including the presence of coarse tramp material or oversize particles;
• Specific gravity of solids and estimated slurry density;
• Particle hardness and mineral contamination;
• pH, chemical additions, and any corrosion concerns;
• Temperature range, especially where process water quality or climate can affect viscosity;
• Whether the slurry can settle during shutdowns, low-flow conditions, or standby periods.

One common mistake is to specify a pump using average solids content only. Average conditions may describe a normal operating hour, but equipment has to survive and remain controllable during upset conditions. If the thickener underflow can periodically become much denser, or if flotation concentrate density rises during a process change, that range should be reflected in the duty review. A pump that handles the average slurry comfortably but cannot recover from the heavy end of the range creates an avoidable operational risk.

Match the Pump Curve to the Real System Curve

Fine coal circuits often change after commissioning. Pipe routes are adjusted, valves are added, cyclone arrangements are modified, and wear gradually increases friction losses. For that reason, the system curve should not be treated as a fixed drawing exercise. It needs to account for static elevation, friction in the pipeline, fittings, valves, instruments, discharge conditions, and the pressure demand of downstream equipment.

A pump should normally operate near a suitable region of its performance curve rather than continuously at either extreme. Operation too far to the left can bring recirculation, vibration, heat generation, and accelerated wear. Operation too far to the right can reduce available head, overload the drive, and make pressure control difficult. In slurry service, the consequences are often more expensive because wet-end wear can move the operating point further over time.

For cyclone feed duties, the selected pump should provide enough controllable margin without relying on a throttled valve as the main long-term solution. Throttling may be necessary for adjustment, but it consumes energy and can conceal an oversized pump selection. Variable-speed control can be valuable where feed conditions change frequently, provided the control philosophy accounts for minimum safe pump speed, pipeline velocity, and the response time of downstream equipment.

Wear Life Is a Circuit Design Issue, Not Just a Materials Choice

Material selection matters, but it should not be used as a substitute for good hydraulic and piping design. High-chrome white iron, elastomer linings, polyurethane components, and other wear-resistant options may be appropriate depending on particle size, impact conditions, chemistry, and required service life. No material is universally best.

Elastomer-lined components can perform well where particles are relatively fine and impact is limited. Hard metal components may be more suitable when sharp, dense, or coarser mineral particles are present. The decision should be made with the expected solids profile in mind, not simply by copying the material used elsewhere in the wash plant. A pump feeding a fine flotation concentrate stream may need a different wet-end arrangement from one transferring dense underflow with mineral contamination.

Pipeline layout has equal influence. Sudden direction changes, poorly designed tees, oversized dead legs, and low-velocity sections can create local wear or solids accumulation. The pump can then be blamed for a problem that originates in the piping. In practice, a review of elbows, branch connections, isolation valves, and drain points often reveals more about expected maintenance demand than a catalogue comparison does.

It is also worth planning for wear-induced performance loss. As impellers, liners, and throatbush areas wear, the pump may deliver less head and reduced efficiency. If the original duty point had no operating margin, a circuit can gradually become unstable well before a component reaches the end of its physical service life. Wear allowance should therefore be considered in the selection review, alongside the maintenance plan.

Do Not Underestimate Suction Conditions and Entrained Air

Many fine coal recovery problems are diagnosed as pump capacity issues when the root cause is poor suction behavior. A flooded suction arrangement is generally easier to manage than a lift condition, particularly for dense slurry. The suction line should be as direct as practical, adequately sized, and arranged to avoid air pockets. Restrictive strainers, unnecessary bends, or poorly placed valves can reduce available suction head and contribute to unstable operation.

Entrained air deserves special attention in flotation-related services. Froth carryover, vortexing in sumps, leaking suction joints, or a poorly controlled sump level can all introduce air. The result may be surging, reduced delivered flow, noise, vibration, and erratic pressure. A larger pump will not necessarily solve this. Sometimes the correct response is a sump modification, improved level control, an anti-vortex device, or a revised suction arrangement.

Net positive suction head should be assessed using the actual slurry service conditions and pump supplier guidance. It should not be assumed that clean-water calculations alone capture the available margin. Where the process is sensitive, the suction design merits a detailed review before equipment is ordered rather than a corrective modification after startup.

Select for Maintenance Access Before Construction Is Complete

A reliable fine coal pump installation is one that maintenance crews can actually work on. This sounds obvious, yet access constraints are frequently discovered after steelwork, pipework, cable trays, and guards are in place. A pump with a sound hydraulic design becomes expensive when lifting equipment cannot reach it, suction spools cannot be removed safely, or there is no room to withdraw a wet end.

During layout review, consider how liners, impellers, seals, bearings, and drive components will be inspected and replaced. Check the available lifting path, not just the crane capacity. Confirm that isolation points allow the pump to be removed without draining an excessive section of the process plant. For duty-critical positions, the value of installed standby capacity should be assessed against the consequences of an unplanned shutdown. The answer depends on circuit storage, bypass options, maintenance duration, and the impact on recovery—not on a generic rule that every pump needs a spare.

Seal arrangement should also match the plant’s support systems. If gland water is used, its pressure, cleanliness, availability, and monitoring need to be dependable. A seal system that works on a process diagram but receives inconsistent service water will create recurring failures. In some duties, alternative sealing arrangements may reduce water demand or leakage concerns, but the decision still needs to account for solids, pressure, shaft movement, and maintenance capability.

Build the Selection Around Operating Scenarios

The best pump data sheet is usually one that reflects more than a single design point. It should identify normal operating conditions, expected minimum and maximum flow, slurry density range, startup conditions, possible blocked-line scenarios, and any temporary recirculation requirements. This is particularly important where Coal Washing Pumps are connected to variable upstream processes such as thickeners, flotation cells, or sump systems with fluctuating levels.

A useful design review asks uncomfortable but realistic questions. What happens after a short outage if solids settle in the suction line? Can the pump start against the expected discharge condition? Will a reduced plant throughput push the line velocity low enough for deposition? If one cyclone cluster is isolated, does the pump still operate within an acceptable range? Can operators recognize a developing wear problem from pressure, power, vibration, or flow trends before recovery is affected?

Instrumentation should support those decisions. Flow, pressure, sump level, motor load, and vibration information can be useful, but only when the signals are interpreted in the context of the process. A decline in discharge pressure might indicate impeller wear, an open bypass, a suction restriction, reduced speed, or a change in slurry properties. The point is not to install every available instrument; it is to measure the conditions that help distinguish one failure mode from another.

A Practical Basis for Final Pump Selection

Before releasing a purchase specification, align the pump supplier, process designer, piping designer, and maintenance representative around the same duty information. Differences between a process flow diagram, piping model, civil layout, and equipment schedule are common during project development. Those differences become costly when they affect static head, suction elevation, available footprint, or the actual control requirement.

The final selection should demonstrate that the pump can handle the intended slurry range, meet the system head requirement with sensible operating margin, tolerate expected wear, and remain accessible for routine intervention. It should also be clear how speed, valves, sump level, and downstream equipment will interact during normal operation and abnormal conditions.

In fine coal recovery, the lowest initial pump price is rarely the most useful comparison point. A better decision comes from looking at recovery stability, energy demand, wet-end life, downtime exposure, and the practical effort required to keep the unit operating. When those factors are considered together, Coal Washing Pumps become part of a controlled recovery system rather than another recurring source of plant disturbance.
