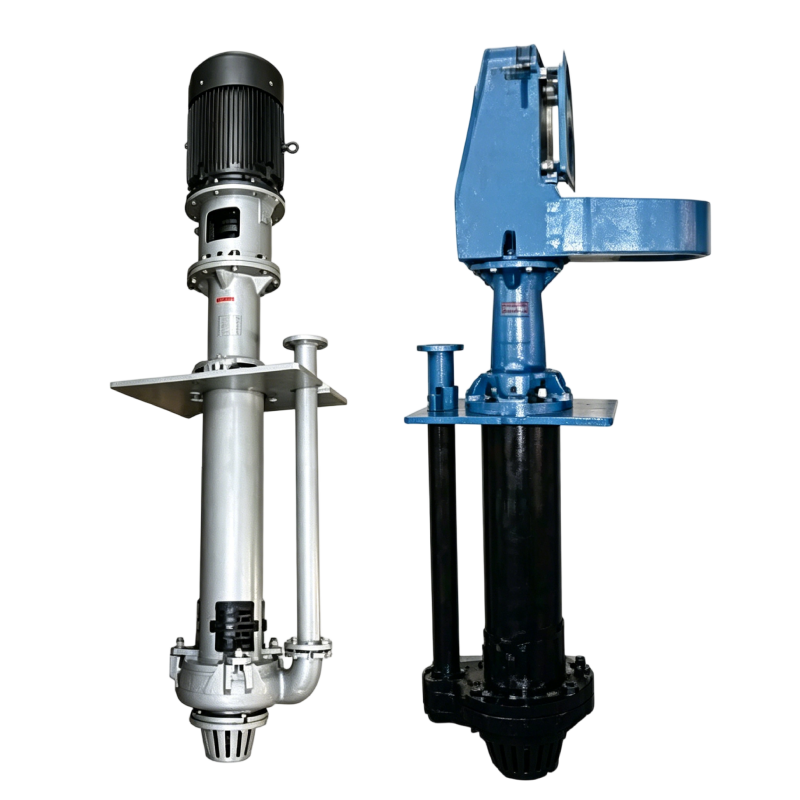

Type DV(R) Sump Pump

This pump features a vertical cantilever design with a single pump casing, double suction configuration, and semi-open impeller. It is constructed from high-chromium alloy or rubber materials. The clearance between the impeller and the guard plate is adjustable to ensure efficient operation. No shaft seal is required. With rubber wetted parts and rubber-lined components in contact with slurry, it is suitable for highly corrosive working conditions. Drive options include direct connection or belt drive. The pump rotates clockwise when viewed from the drive end.
