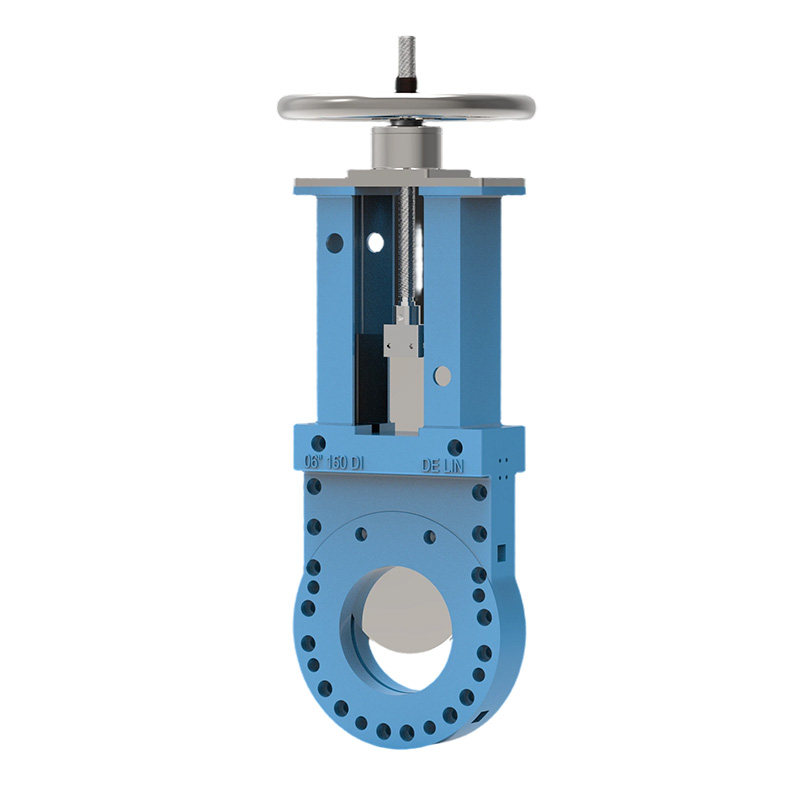

Two-piece steel welded valve body, high processing accuracy, easy installation and maintenance. Equipped with standard wear-resistant lining and DSS leak-free sealing structure to prevent medium leakage. The valve disc adopts laser cladding wear-resistant alloy with stable wear resistance and excellent cost performance, suitable for conventional mining slurry transportation scenarios.
All Products
Stay Connected
If you have any questions, please contact us and we will contact you as soon as possible.
Prduct Introdution
Valve Body Structure：Two-piece steel butt-welded valve body
Lining Configuration：Standard length, standard thickness wear-resistant lining
Sealing Type：DSS leak-free seal + packing seal (both optional)
Application Conditions：Mine, metallurgy routine slurry conveying, mild wear and corrosion conditions
General Specifications
Standards: ASME B16.34, ASME B16.10
Pressure Rating: Class 150, Class 300
Size Range: 2" (DN50) - 36" (DN900)
Disc Process: Laser cladding with tungsten carbide, Ni60 wear/corrosion/high-temperature resistant alloy
Core Material: High-strength wear-resistant material identical to that used for slurry pumps
