Integral cast valve body, stable structure without deformation, stronger pressure bearing capacity. Thickened wear-resistant lining homologous to slurry pumps, greatly improving service life. Optimized sealing structure with more stable sealing performance, upgraded erosion and wear resistance, suitable for high-concentration, moderately severe industrial working conditions, with lower long-term operation cost.
All Products
Stay Connected
If you have any questions, please contact us and we will contact you as soon as possible.

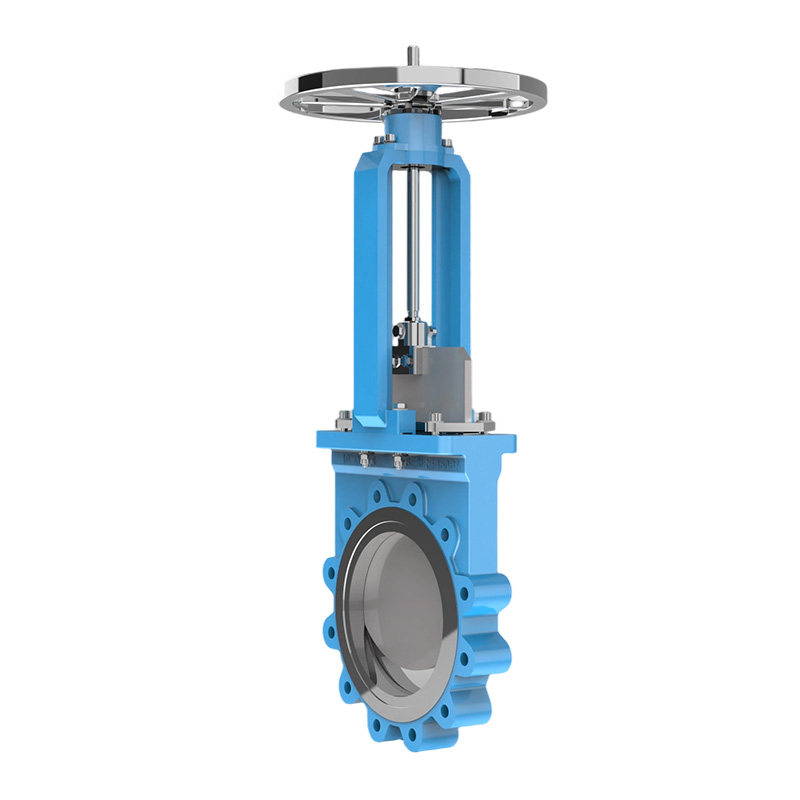

Prduct Introdution
Valve Body Structure：Integral one-piece cast valve body
Lining Configuration：Standard length, reinforced thickened slurry pump wear-resistant lining
Sealing Type：DSS leak-free seal + packing seal (both optional)
Application Conditions：High-concentration slurry conveying, moderate wear and corrosion conditions
General Specifications
Standards: ASME B16.34, ASME B16.10
Pressure Rating: Class 150, Class 300
Size Range: 2" (DN50) - 36" (DN900)
Disc Process: Laser cladding with tungsten carbide, Ni60 wear/corrosion/high-temperature resistant alloy
Core Material: High-strength wear-resistant material identical to that used for slurry pumps
