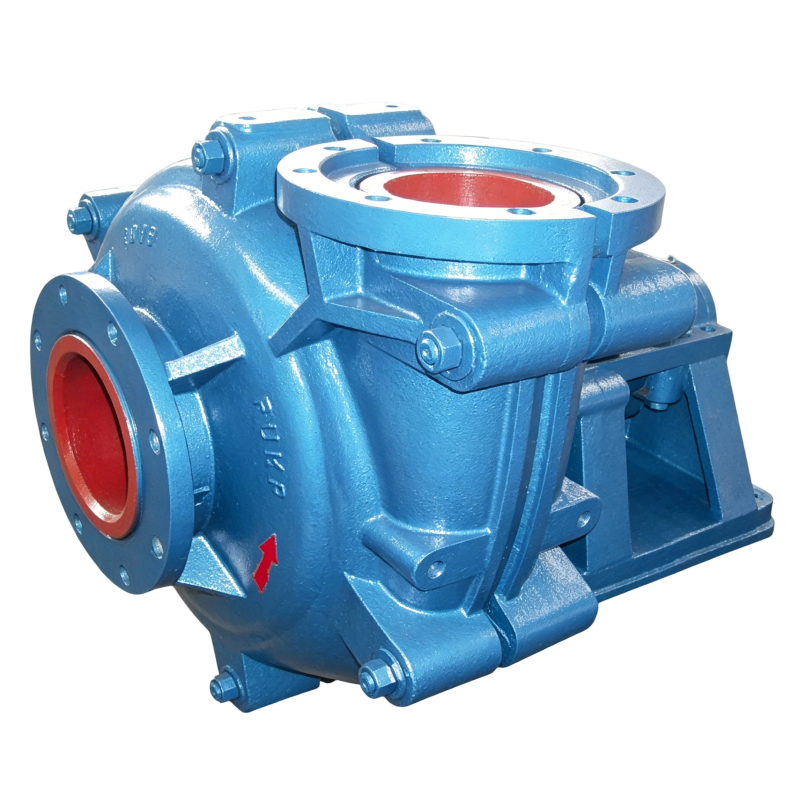

Type DM(R) Slurry Pump

Type DM(R) Slurry Pump

Double pump casing structure. High efficiency, wear resistance, stable performance, and strong part interchangeability. The liner and impeller materials can be wear-resistant metal or rubber. The pump outlet direction can be rotated at intervals of 45° for installation at eight different angles. It supports multi-stage series connection, as well as belt drive and direct-coupled drive. The shaft seal can adopt packing seal, auxiliary impeller seal or mechanical seal. The pump rotates clockwise when viewed from the drive end.

Get Quote

Prduct Introdution

Product Specifications

Diameter : 25 ~ 650mm
Capacity : 2~ 9500m3/h
Head : 5 ~ 55mm(Single Stage)

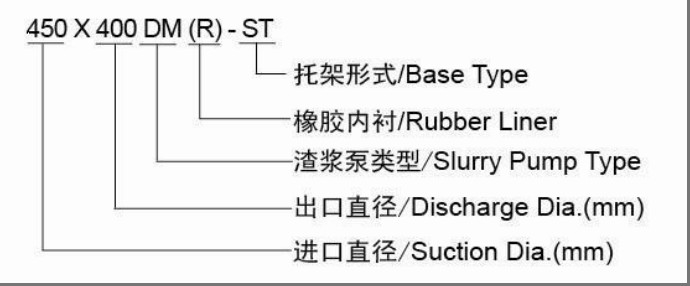

Model Number Definition


2-产品型号释义


Application Fields:

Suitable for medium and low-head industrial applications in metallurgy, mining, coal, electric power and other industries, such as slurry transportation in mining, metallurgy, electric power, steel mills and chemical industries.

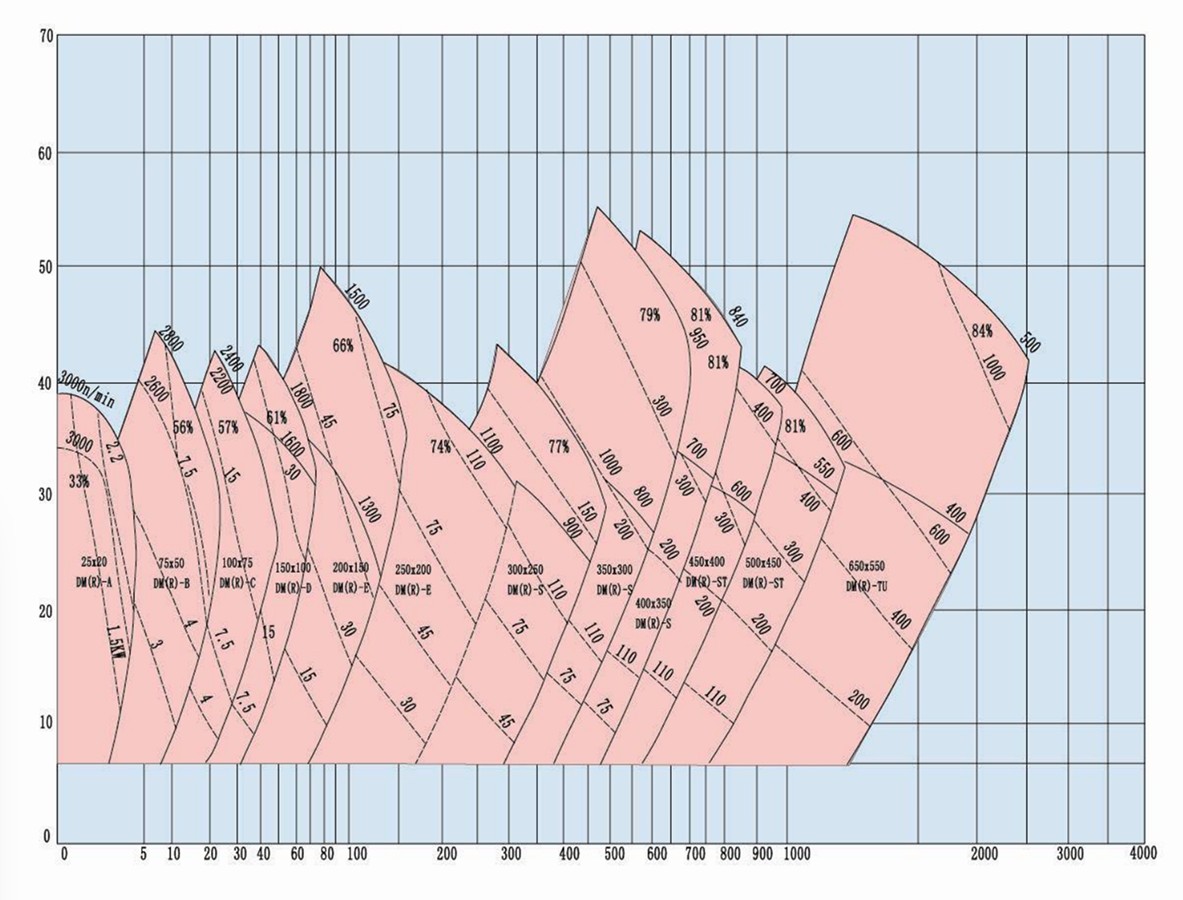

Selection Chart of Type DM(R) Slurry Pump

3-图谱

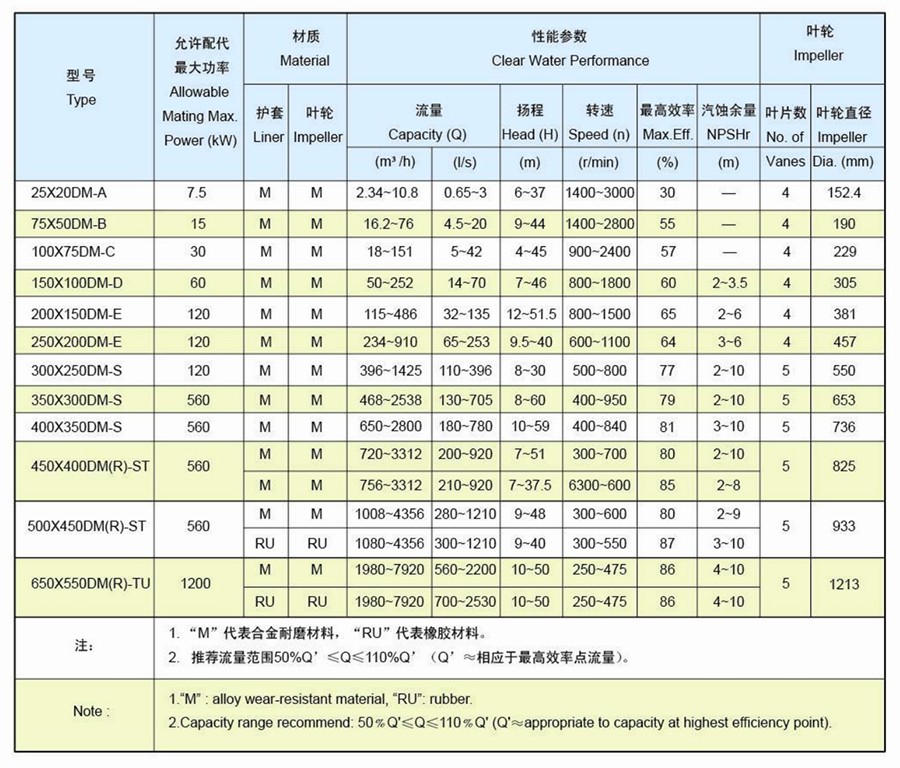

Performance Parameter of Type DM(R) Slurry Pump

4-性能参数

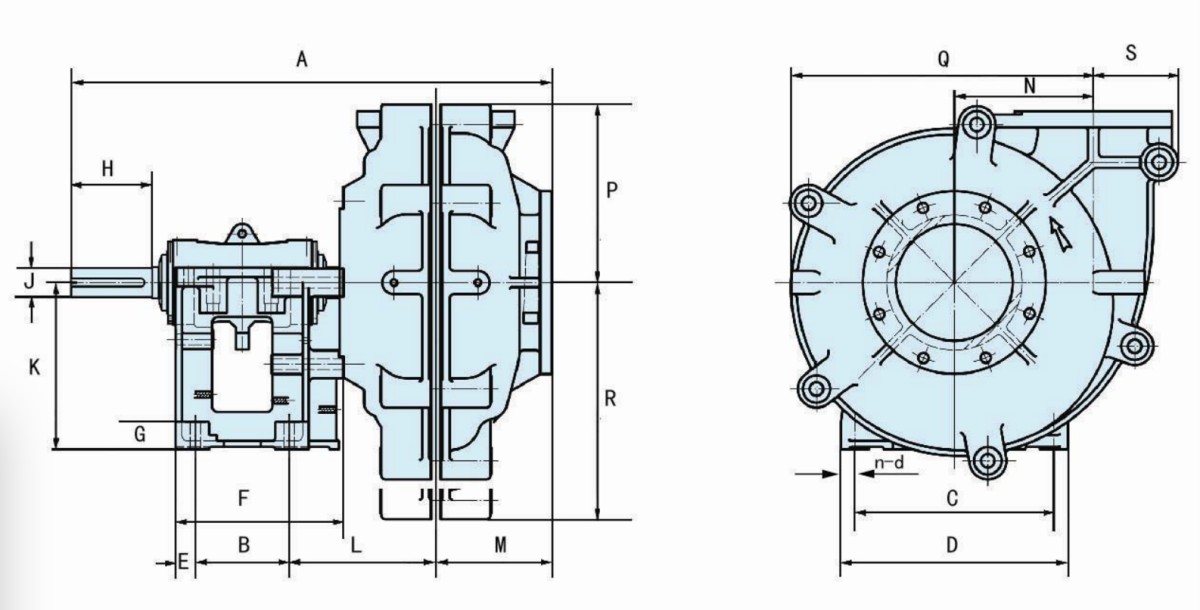

Outline and Installation Dimension of Type DM(R) Slurry Pump

5-1外形安装尺寸图

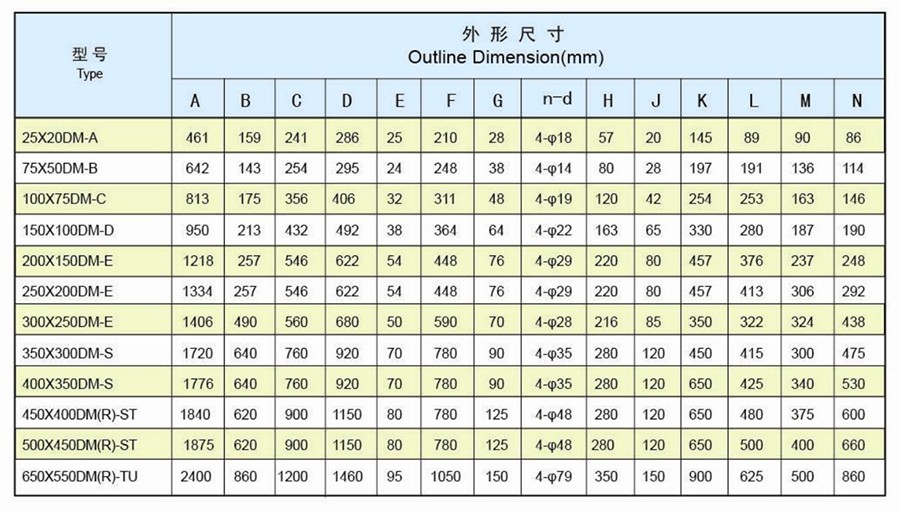

5-2外形安装尺寸图-数据1

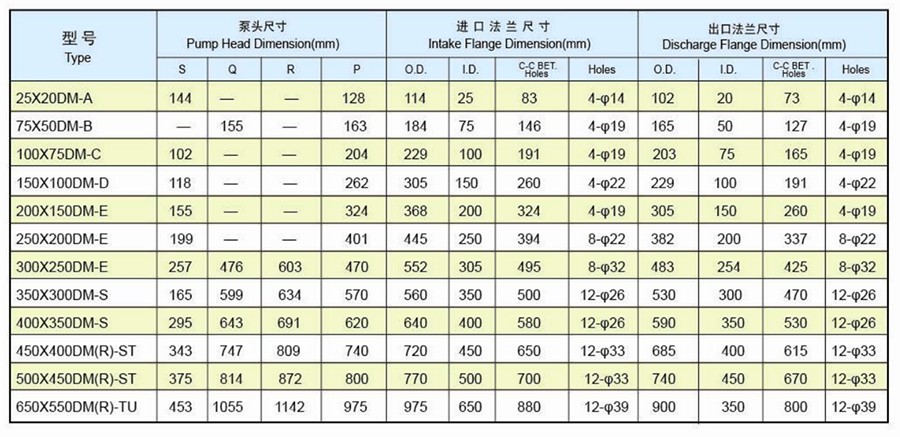

5-2外形安装尺寸图-数据2
