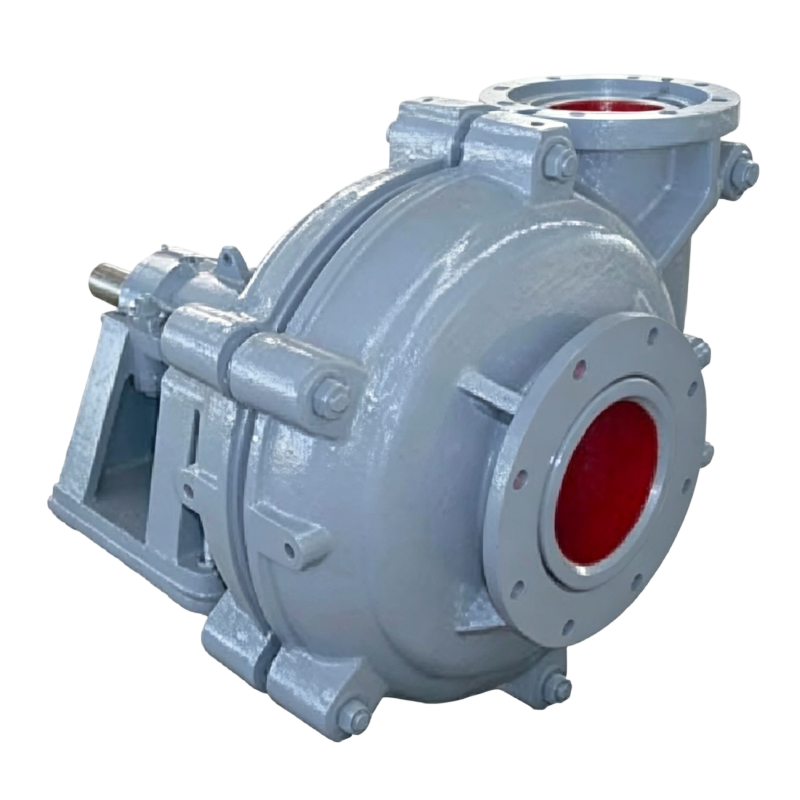

Type DH(R) Slurry Pump

Type DH(R) Slurry Pump

Double casing structure.High efficiency, excellent wear resistance and stable performance with highly interchangeable spare parts.Liner and impeller can be made of wear-resistant metal or rubber.The pump discharge direction can be installed at 8 different angles at 45° intervals, allowing multi-stage series connection.It supports belt drive and direct-coupled drive.Shaft seal options include packing seal, auxiliary impeller seal and mechanical seal.Viewed from the drive end, the pump rotates clockwise.


Get Quote

Prduct Introdution

Product Specifications

Diameter : 25 ~ 450mm

Capacity : 7 ~ 5000m3/h

Head : 5 ~ 59m (Single Stage)

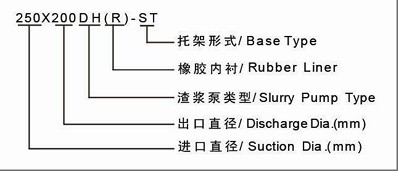

Model Number Definition


2-产品型号释义 1


Application Fields:

It is suitable for conveying highly abrasive and high-concentration slurry in metallurgy, mining, coal, electric power and other industries, such as raw ore, middlings, concentrate and tailings from ferrous and non-ferrous mines.

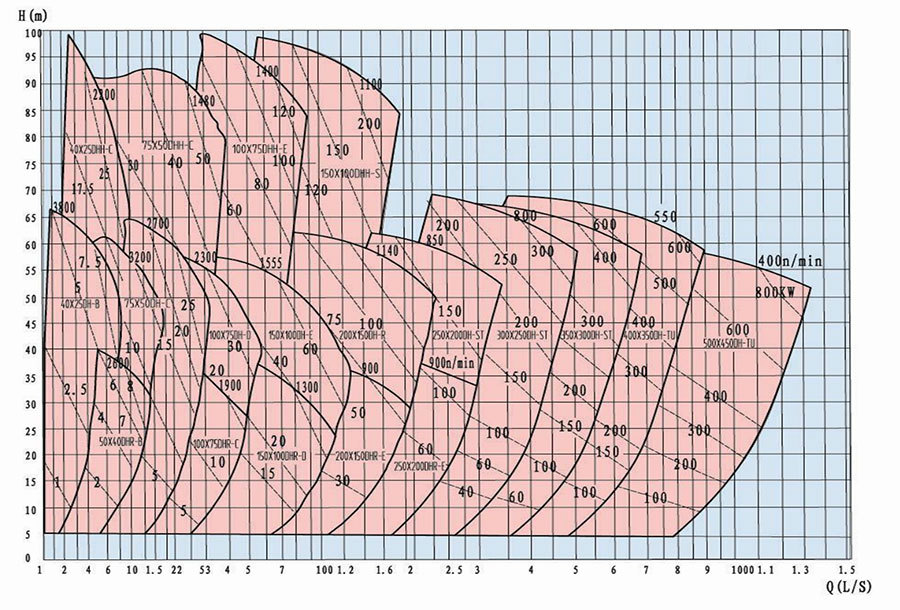

Selection Chart of Type DH(R) Slurry Pump

3-图谱

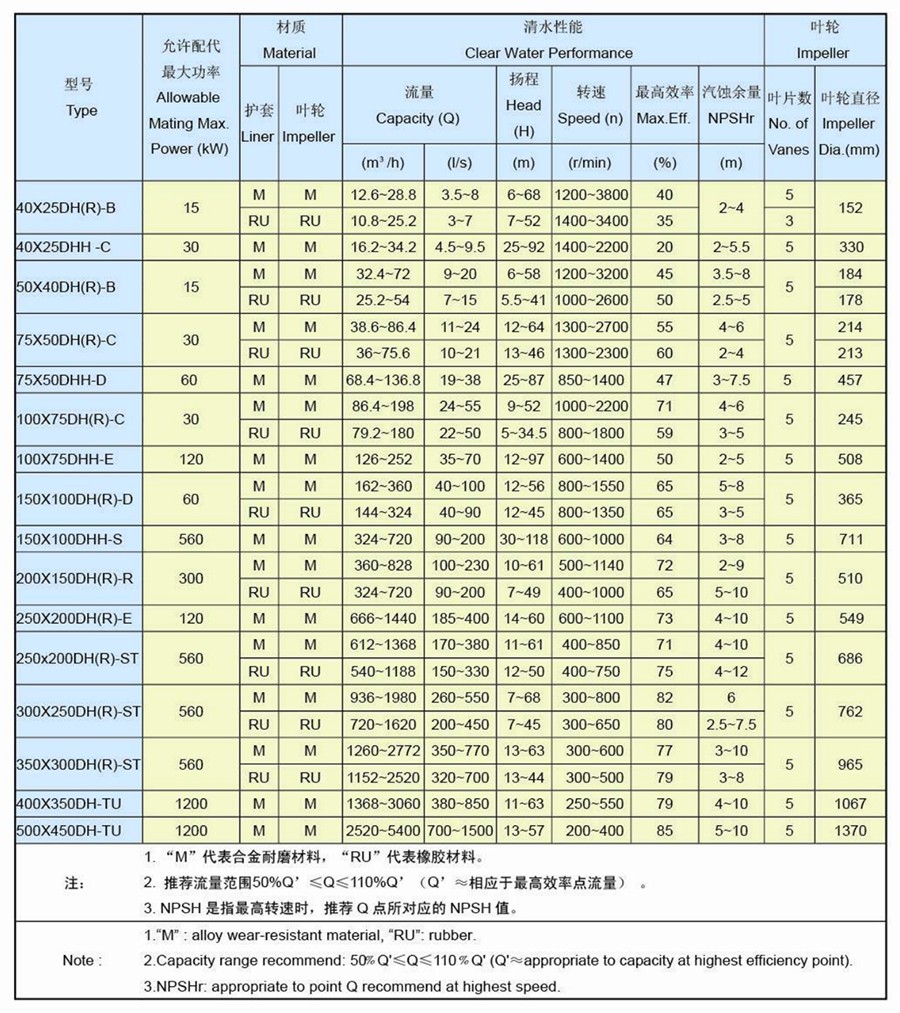

Performance Parameter of Type DH(R) Slurry Pump

4-性能参数

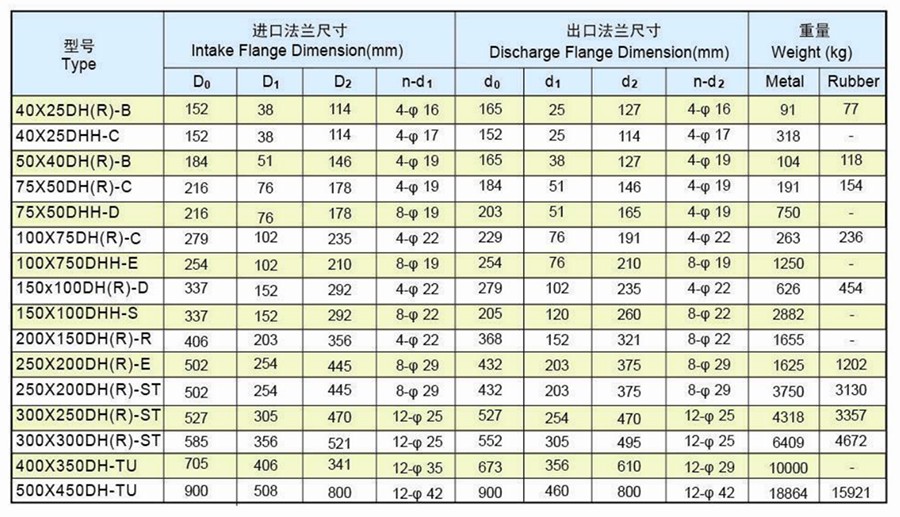

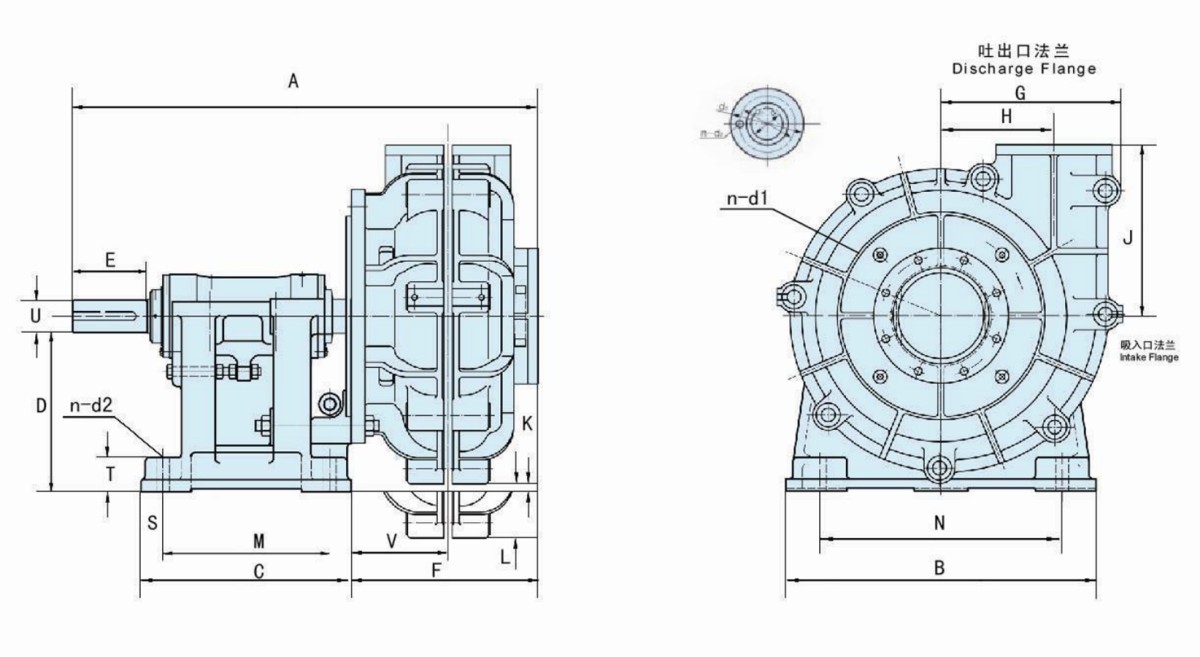

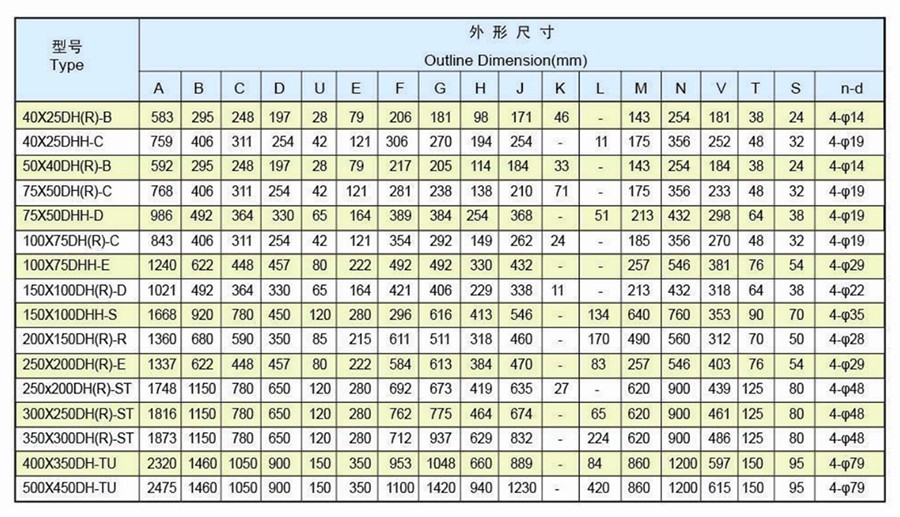

Outline and Installation Dimension of Type DH(R) Slurry Pump

5-外形安装尺寸图

5-2外形安装尺寸图-数据1

5-3外形安装尺寸图-数据2
