Type DF(DHF) Froth Pump

Type DF(DHF) Froth Pump

It is available in vertical and horizontal configurations, both adopting a double pump casing (double shell) structure.It features high efficiency, excellent wear resistance, stable performance, and high interchangeability of parts. The liners and impellers can be made of wear-resistant metal or rubber.The vertical design requires no shaft seal, and the tank can be rubber-lined;the horizontal design occupies less installation space and is capable of handling larger flow rates and higher head slurry.Drive options include direct connection or belt drive.The pump rotates clockwise when viewed from the drive end.

Get Quote

Prduct Introdution

Product Specifications

Diameter : 25 ~ 650mm

Capacity : 2 ~ 13860m3 /h

Head : 10 ~ 60m

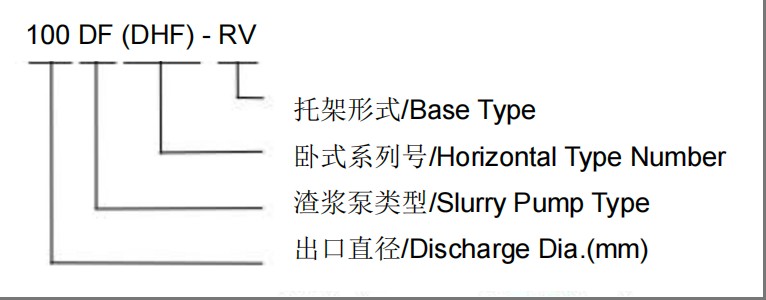

Model Number Definition

1



Application Fields:

Used for the flotation technology, this pump is ideal type of pump  for delivering foaming slurries.


Section Chart of DF(DHF) Type Froth Pump

2

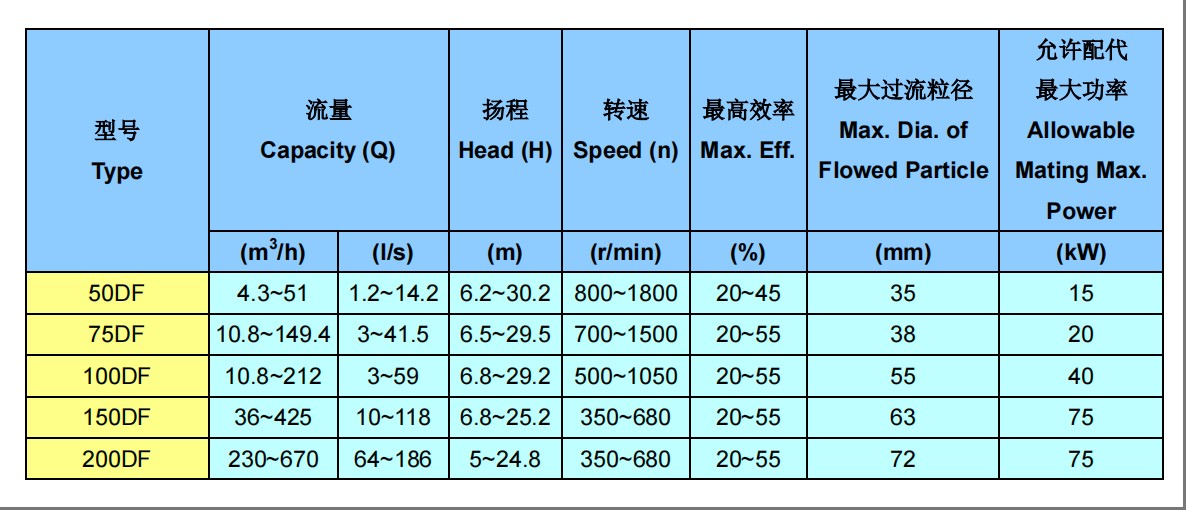

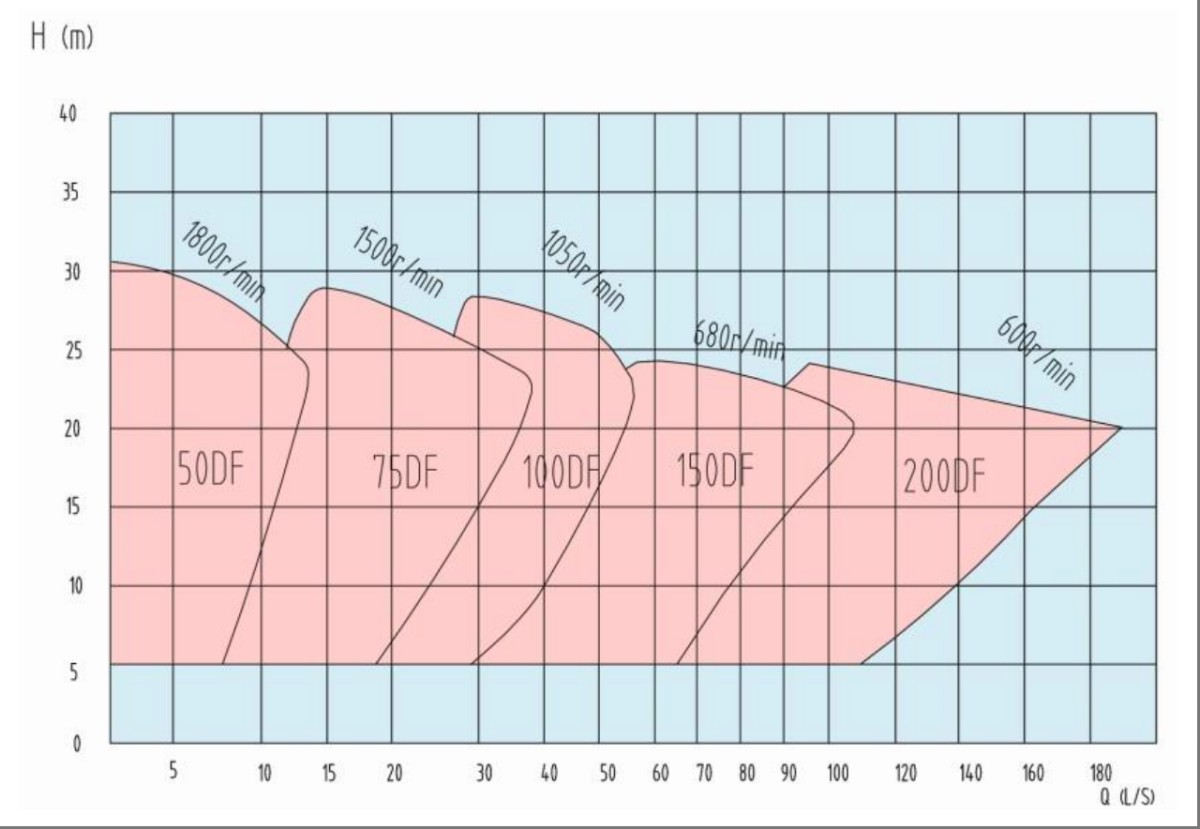

Performance Parameter of DF(DHF) Type Froth Pump

3

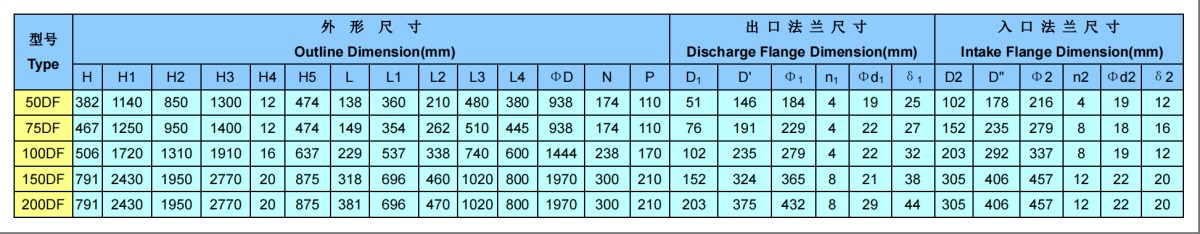

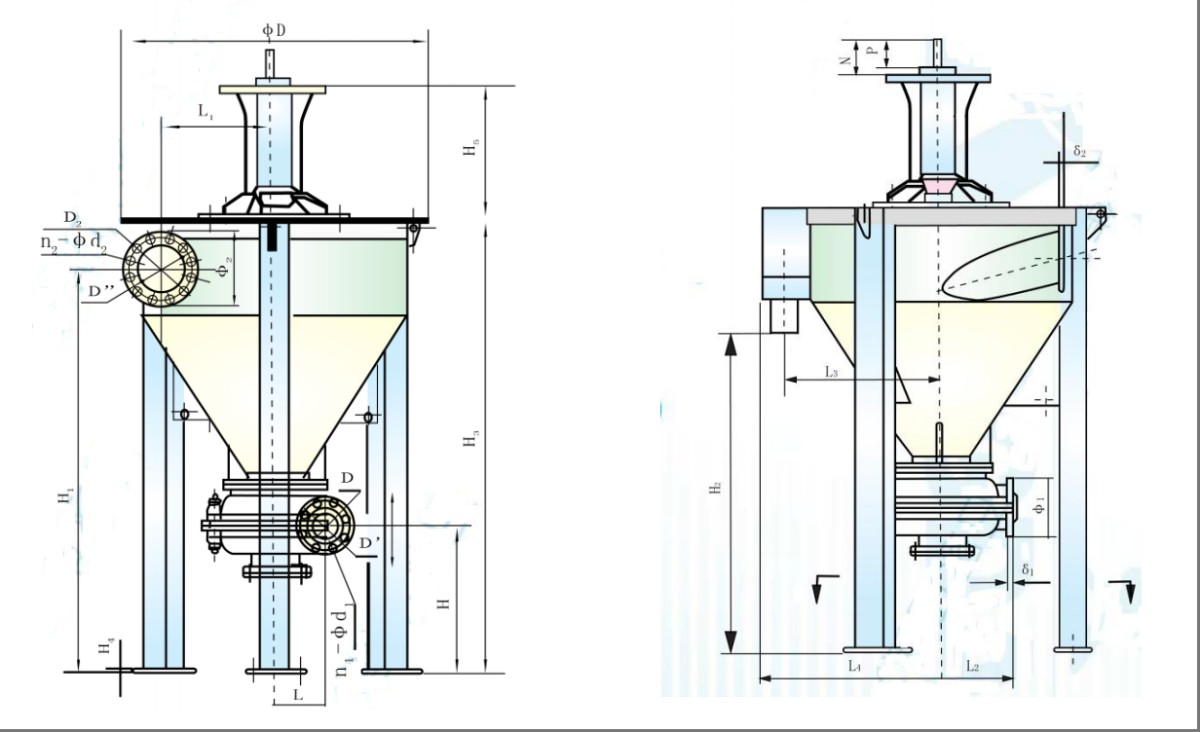

Outline and Installation Dimension of DF(DHF) Type Froth Pump

4


5
