Can Slowing a Slurry Pump Reduce Wear Without Causing Settling?

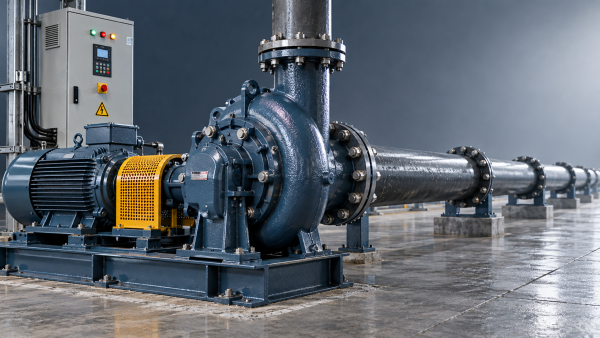

Yes—slowing a centrifugal slurry pump can reduce abrasive wear, provided the resulting flow still transports the solids reliably and the pump remains within an acceptable operating range. The qualification matters. A lower speed may reduce particle impact velocity inside the pump while allowing a solids bed to develop in a horizontal pipe.

“Will slowing down my slurry pump reduce wear without causing settling?” is therefore a system question, not just a pump question. The answer depends on particle size and density, solids concentration, pipe layout, available head, and where the pump operates on its performance curve. The useful target is a verified speed range—not the lowest frequency the variable frequency drive will allow.

Why can lower speed reduce wear?

In abrasive service, wear depends partly on how fast particles strike or slide across wetted surfaces. Reducing rotational speed lowers impeller tip speed. Under suitable operating conditions, that can reduce erosion of the impeller, throatbush, liners, and casing. Lower pipeline velocity can also reduce abrasion in bends and other high-contact areas.

But there is no universal rule that a certain percentage reduction in speed delivers a matching increase in component life. Particle hardness, angularity, impact angle, liner material, and internal flow patterns all influence the result. Corrosive slurries add another mechanism that speed reduction alone will not resolve.

A particularly useful opportunity exists where an oversized pump runs fast against a partly closed discharge valve. Reducing speed while opening the valve may maintain the required flow with less throttling loss. That is different from simply reducing speed and accepting less flow. The revised operating point still needs checking against the pump manufacturer’s limits.

Which velocity must stay above the settling limit?

The starting calculation is the mean slurry velocity in each pipe section:

Velocity = volumetric flow rate ÷ internal pipe area

Use slurry flow, not solids production alone, and actual internal diameter rather than nominal pipe size. Where the line diameter changes, calculate each section separately. A larger-bore section may have a much lower velocity than the pipe immediately downstream of the pump.

For illustration only, a flow of 100 m³/h through a 100 mm internal diameter gives a mean velocity of approximately 3.54 m/s. At 80 m³/h, that falls to approximately 2.83 m/s. Neither value can be called safe without knowing the slurry and pipeline conditions. The example shows how a seemingly modest flow reduction consumes transport margin.

For settling slurries, engineers commonly assess a limit deposition velocity: the approximate boundary below which a persistent solids deposit may form under the conditions being considered. It is not a single value for every slurry, nor does transport necessarily mean every particle stays fully suspended. A moving bed can occur in some transport regimes, but it should not be accepted casually in a line designed for suspension transport.

A defensible minimum velocity needs a margin for changing feed conditions and uncertainty in the prediction. Selecting that margin requires project-specific judgment; a generic percentage cannot replace slurry characterization or operating evidence.

The average particle size is not enough

A fine mineral slurry with an occasional coarse fraction may behave differently from a consistently fine feed at the same bulk density. Review the particle-size distribution, particle density, solids concentration by weight and volume, and any tendency to agglomerate. The coarse or dense fraction can be decisive even when it represents a relatively small part of the stream.

Concentration also changes the transport problem. Some concentrated fine slurries develop yield stress that helps support particles, while increasing pumping resistance. That does not justify applying a coarse-slurry deposition correlation to a non-Newtonian mixture without checking its suitability. Where rheology matters, viscosity and yield-stress measurements may be necessary.

Will reducing RPM reduce flow by the same percentage?

Not necessarily. The centrifugal pump affinity laws describe approximate changes at corresponding operating points: flow scales with speed, head with speed squared, and power with speed cubed. These relationships are useful for screening a change, but they do not independently establish the new operating flow.

Actual flow comes from the intersection of the reduced-speed pump curve and the system curve. In a friction-dominated circuit, flow may approximately follow speed. In a system with substantial static lift or discharge backpressure, reducing speed can cause a disproportionately large flow reduction. Eventually, the pump may not develop enough head to sustain delivery.

Slurry effects on pump performance and changing friction losses add uncertainty. Use appropriate slurry-corrected performance information rather than relying only on a water curve or a drive-frequency ratio.

Also check proximity to the best efficiency point and the manufacturer’s allowable operating range at the proposed speed. Lower RPM does not automatically mean gentler internal conditions. Operation too far toward low flow can produce recirculation and localized wear, even when the discharge pipeline still carries solids.

Where is settling most likely to appear first?

Inspect the route, not just the pump discharge gauge. Long horizontal runs, oversized replacement sections, poorly swept low points, and infrequently used branches deserve attention. A vertical lift introduces a different concern: if delivery collapses or the pump stops, solids may fall back and accumulate in lower sections.

For a pump transferring cyclone underflow to another process stage, the available speed reduction may be constrained by dense, coarse feed and batch-to-batch variation. A fine-slurry recirculation duty may offer more flexibility, but only if downstream pressure, mixing, and solids distribution remain acceptable. These are different duties even when the pump models are identical.

The difficult condition is often outside steady production. Feed interruption, a concentration surge, or a restart after an outage may establish a higher minimum operating requirement than normal running. A speed that works during a short trial with dilute slurry may fail when the process returns to its usual solids load.

How should a lower-speed trial be carried out?

Start with a stable baseline and an agreed recovery procedure. Before changing speed, establish which process limits must remain satisfied and whether the line can be flushed safely. For a line that is already prone to plugging, an engineering review should come before an exploratory speed reduction.

• Record the duty: RPM, measured slurry flow, suction and discharge pressure, slurry density, valve positions, motor power, and relevant tank levels.
• Check the limits: minimum transport flow for critical pipe sections, required discharge pressure, pump operating range, and applicable seal or auxiliary-system requirements.
• Reduce speed in controlled steps: allow sufficient time at each step for the circuit and downstream process to respond. Do not prescribe one universal step size.
• Watch trends: compare pressure, flow, density, and vibration together. Where available, differential pressure across a vulnerable pipeline section is more informative than one discharge reading.
• Verify variable conditions: assess credible changes in solids loading, feed size, and operating sequence before adopting a permanent minimum speed.

A trial should last long enough to reveal gradual accumulation, not merely demonstrate that slurry exits the pipe. For a given flow and slurry condition, increasing pipeline pressure loss can indicate a developing restriction, but it is not proof of settling. Changes in density, rheology, valve position, or instrumentation can produce similar symptoms.

If flow becomes unstable or pressure behavior changes unexpectedly, stop the trial and follow the approved recovery procedure. Do not assume accelerating into a suspected blockage will clear it safely. Never open a line or fitting until it has been isolated, depressurized, and verified safe under the site’s procedures.

What if the pump is already near minimum transport flow?

Then a simple speed reduction has little room to help. Consider whether the duty can be maintained at lower RPM through a different pump selection or hydraulic configuration. Depending on the installation, a larger impeller operated more slowly may deliver the required head and flow, but this requires manufacturer review rather than an assumption that larger always means less wear.

Other wear-control measures may be more practical: correcting off-design operation, reviewing impeller clearances, selecting suitable wear materials, improving suction conditions, or redesigning heavily worn bends. Each addresses a different mechanism. Cavitation damage, for example, should not be treated as ordinary abrasive erosion.

Reducing pipe diameter can preserve velocity at lower throughput, but it also increases friction loss and can intensify local abrasion. Adding carrier water can change transport behavior, yet increases hydraulic load and may disrupt downstream processing. Neither is a free workaround.

What should determine the final speed setting?

Use the lowest validated speed that meets transport, pump, and process requirements across the intended operating conditions—not the lowest speed achieved during one favorable test. Set any drive minimum and low-flow protection from those requirements. Where feed properties vary substantially, one fixed minimum frequency may not provide adequate protection.

Judge the change by more than instantaneous motor power. Compare wear over comparable solids throughput and duty, and include flushing demand, lost production, and restart reliability. A lower hourly wear rate is less persuasive if transferring the same material takes much longer.

If there is one calculation to complete before touching the drive setting, it is the minimum acceptable flow through the most vulnerable pipeline section. Pair that with the reduced-speed pump curve. If both leave a credible operating margin, a monitored trial is reasonable; if they do not, address the system constraint before slowing the pump.
